Die-cut Double-sided Tape Selection Guide | Shape, Substrate and Working Condition Matching
In industrial precision assembly, the bonding performance of industrial double-sided tape does not rely solely on adhesive viscosity. Precision die-cut shape compatibility, tape substrate performance and working condition matching are the core keys to eliminating accessory warping, peeling, abnormal noise and aging failure. Different equipment structures and lamination scenarios require customized die-cut shapes and exclusive substrate materials. With in-depth experience in the adhesive industry, Zhongke Foam sorts out material selection logic for scenarios including 3C electronic backing adhesive, automotive interior tape, new energy equipment sealing, outdoor waterproof tape, ETC special adhesive, parking sign fixing tape, home appliance nameplate adhesive, lamp sealing backing adhesive and vehicle ornament fixing adhesive. This article explains the adaptive advantages of different substrates to support accurate selection and avoid assembly failures.
1. Mainstream Industrial Die-cut Double-sided Tape Shapes | Corresponding Scenarios and Advantages
Precision die-cutting supports customized tape shapes for diverse applications. Shape compatibility directly determines bonding stability and appearance, fundamentally solving adhesive failure and meeting assembly requirements of various accessories. Reasonable shape customization can realize full fitting, no glue overflow, no assembly dead corners, and greatly improve the yield rate of industrial lamination and automated production efficiency.
1.1 Full-square / Rectangular Die-cut | Specialized for Large-area Flat Lamination
Features full and uniform adhesive coverage with even stress distribution and no splicing gaps, effectively preventing hollowing and edge warping. Ideal for automated precision lamination. Widely applied for sign bonding, flat component fixing and large-area surface adhesion.

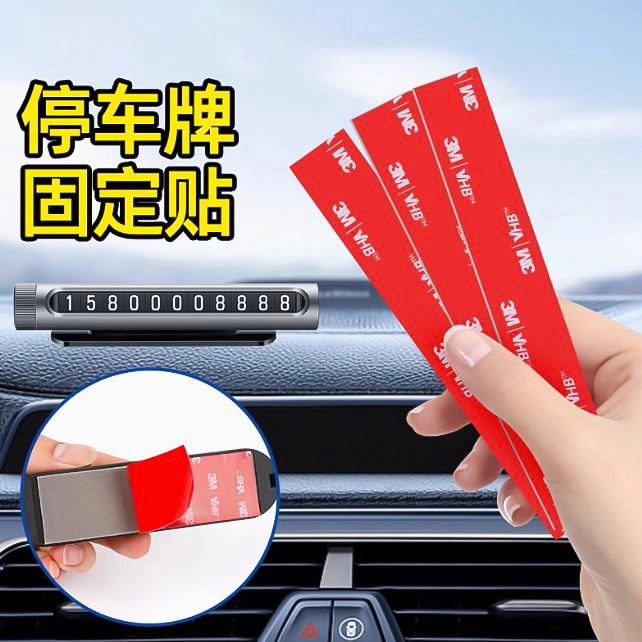

Applications: Equipment panel fixing, home appliance backboard lamination, large nameplate and sign pasting, full-surface bonding of flat electronic parts, parking sign fixing, large-area home appliance nameplate adhesion.

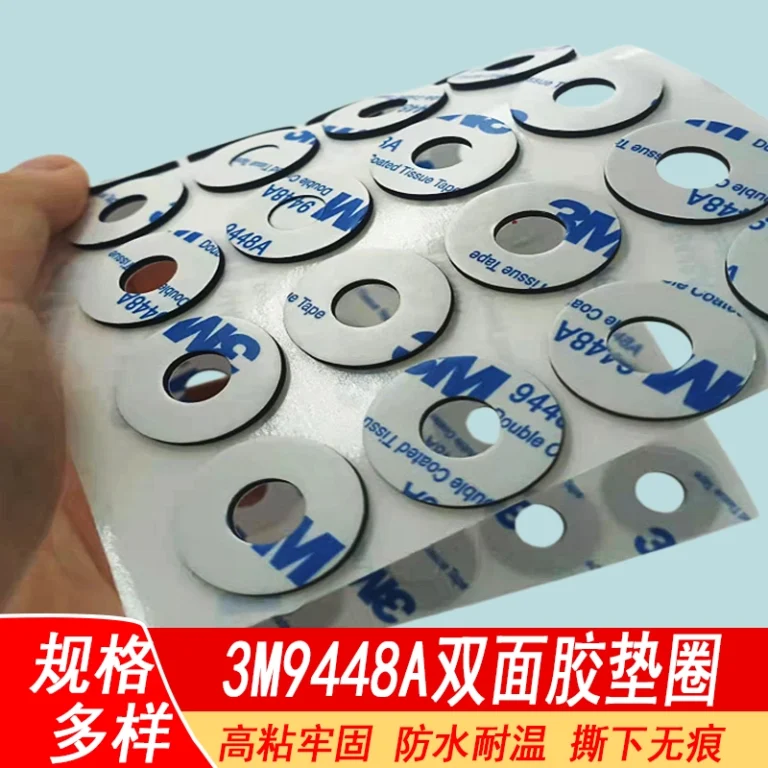

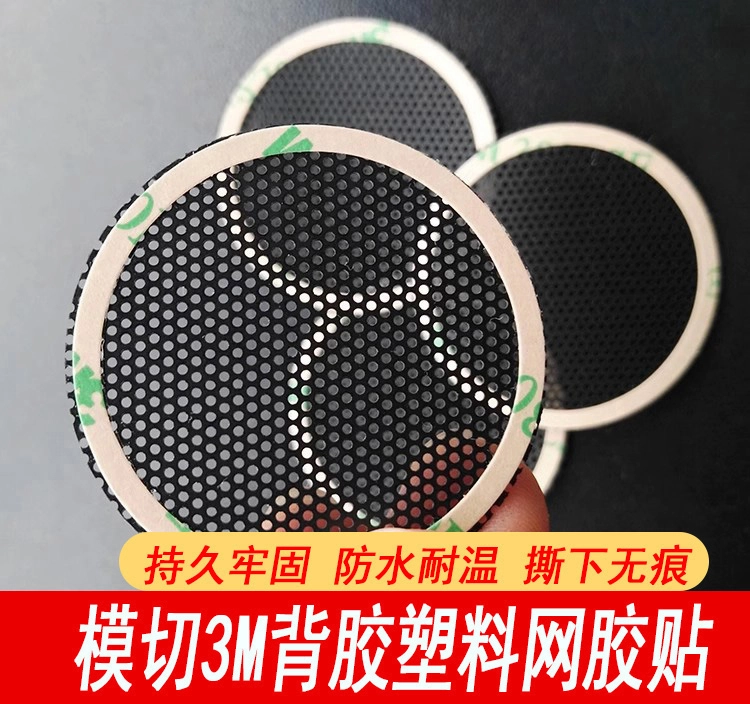

1.2 Ring / Frame-shaped Die-cut | Dedicated for Border Sealing and Dustproofing
Applications: Screen border sealing, optical lens fixing, lamp light-transmitting frame lamination, functional area dustproof sealing for precision instruments, display frame backing adhesive, lamp sealing bonding protection.

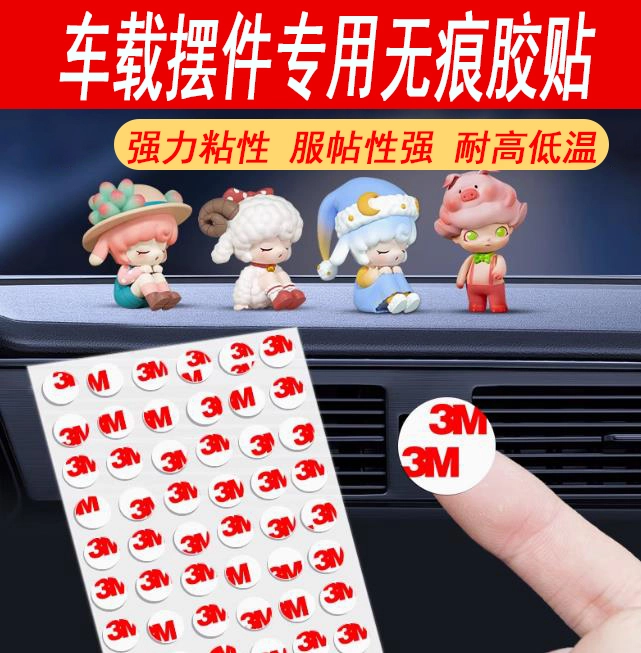

1.3 Small Round Dot / Point Die-cut | Specialized for Precision Point Fixing
Compact and precise with no adhesive overflow and no space occupation. Mass-producible via die-cutting and compatible with automated point bonding processes to prevent offset and loosening of small parts, ideal for precision positioning and point fixing scenarios.
Applications: Small electronic component positioning, key accessory fixing, screw hole shielding, light-duty buffer point bonding, smart miniature part fixing, circuit board point backing adhesion.

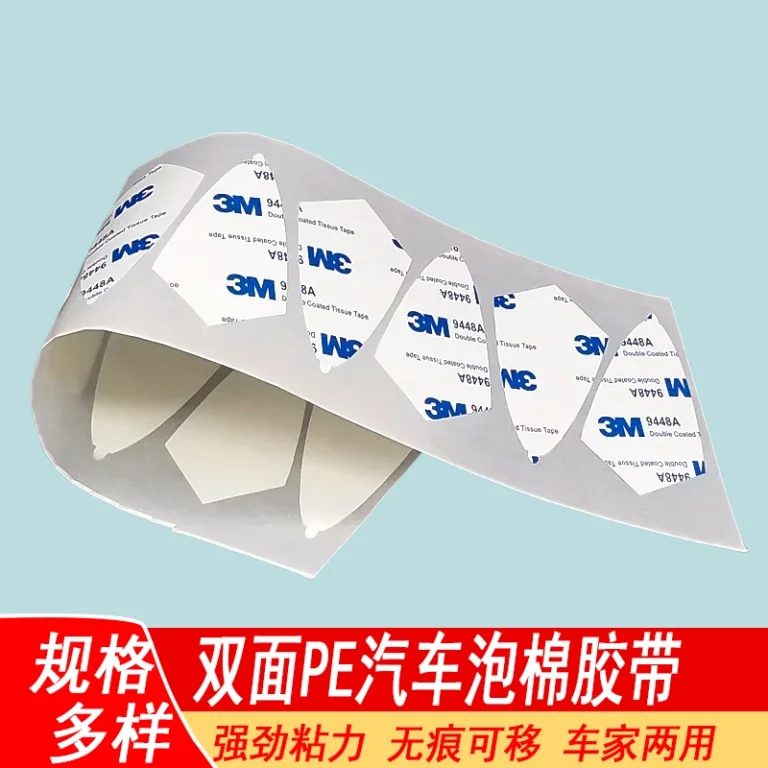

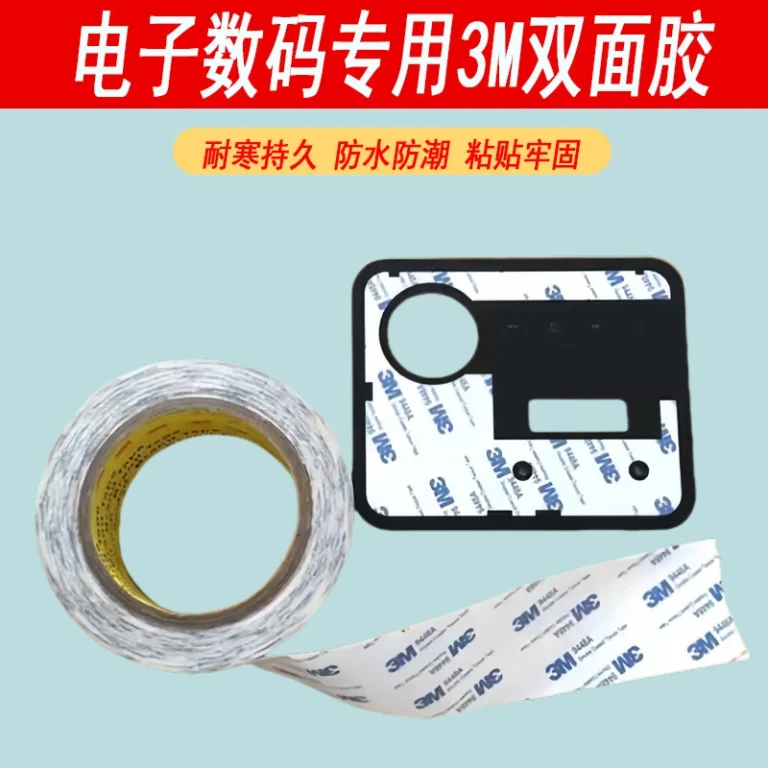

1.4 Special-shaped / Contour Die-cut | Exclusive for Irregular Structures
Custom-cut according to curved surfaces and irregular profiles with no residual adhesive edges or blind spots. It compensates for the limitations of standard tapes and meets the assembly demands of non-standard precision accessories, perfectly adapting to curved surface decoration and irregular workpieces.
Applications: Special-shaped automotive interior trim strips, curved home appliance parts, irregular electromechanical components, new energy special-shaped accessory fixing, automotive trim anti-vibration adhesive, curved home appliance lamination backing adhesive.

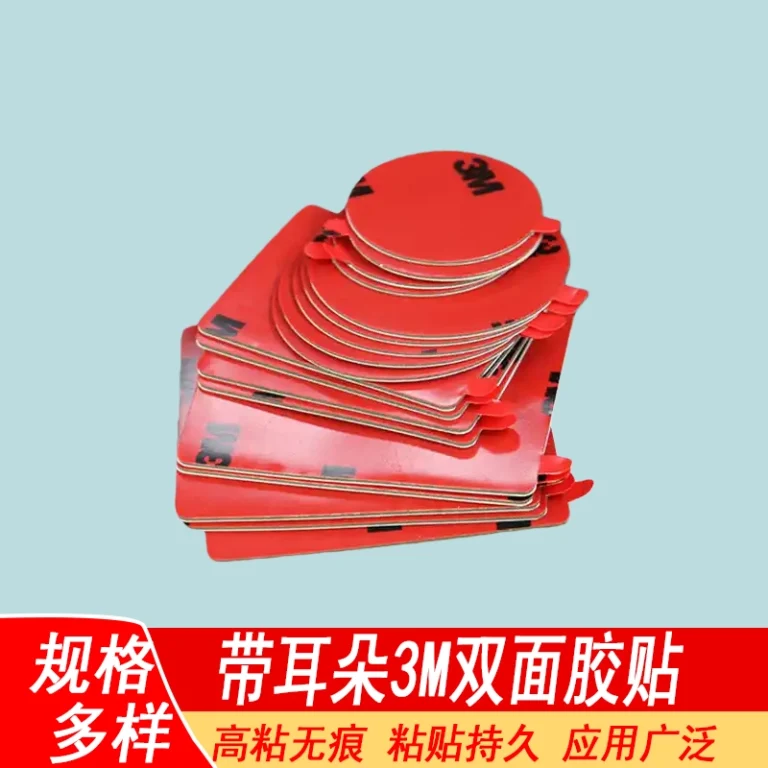

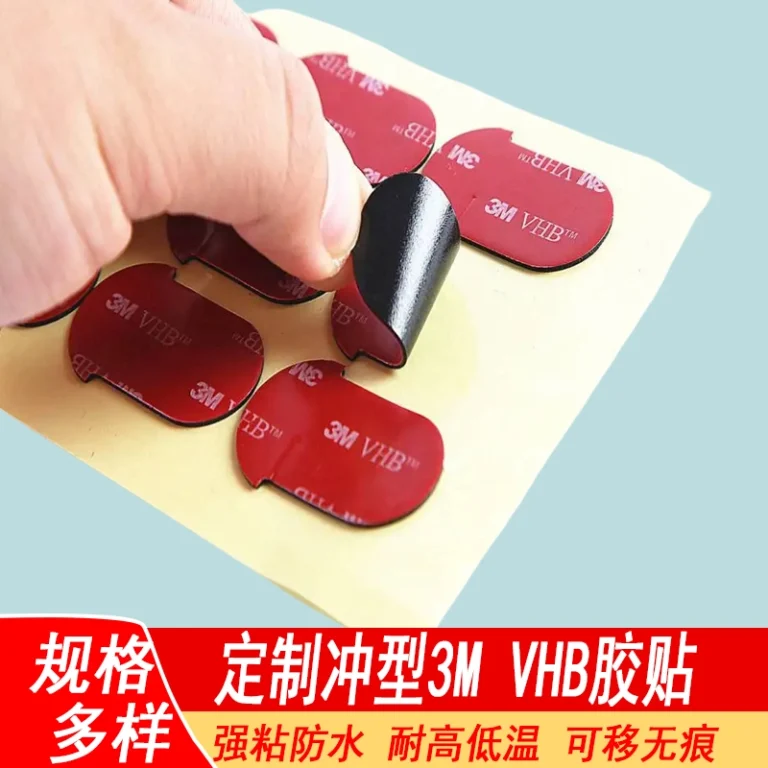

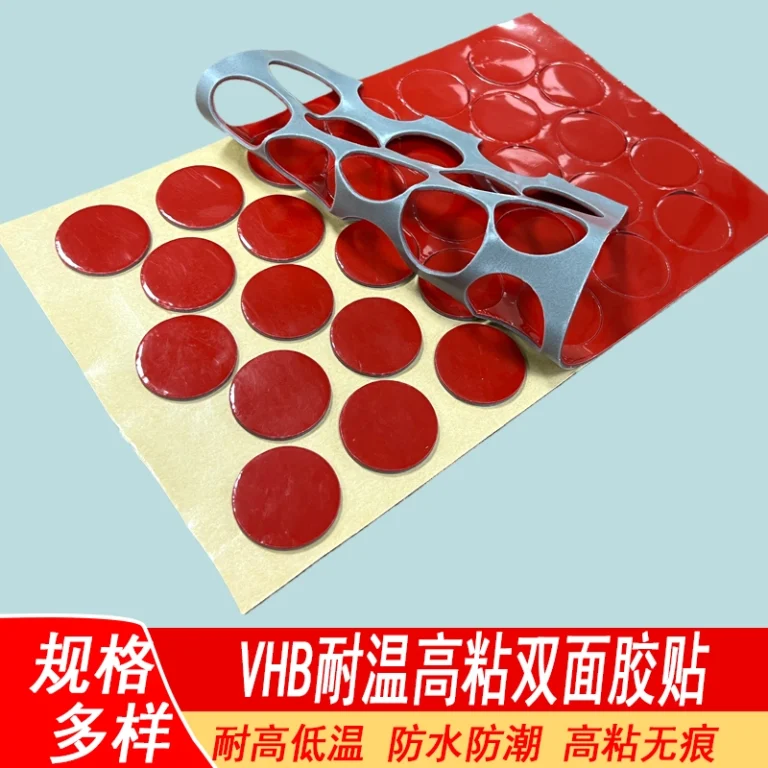

1.5 Pull-tab / Waste-removal Die-cut | Optimized for Automated Mass Production
Designed with pull tabs for smooth peeling and zero residual adhesive, greatly improving production efficiency. Fully adapted to high-speed automated production lines for mass electronic assembly.
Applications: 3C electronic automated mass production, assembly line batch processing, high-frequency repeated bonding, mass die-cutting and lamination of ETC special adhesive, mass assembly backing adhesive for digital products.
2. Scenario-based Substrate Selection Guide | Optimal Tape Substrates for Different Working Conditions
After confirming the die-cut shape, substrate material determines the service life and environmental adaptability of the tape. Different substrates have distinct differences in weather resistance, temperature resistance, shock resistance and shielding performance. Accurate material matching according to actual working conditions can completely avoid aging, degumming and failure risks. The following four mainstream industrial scenarios provide accurate substrate matching standards.

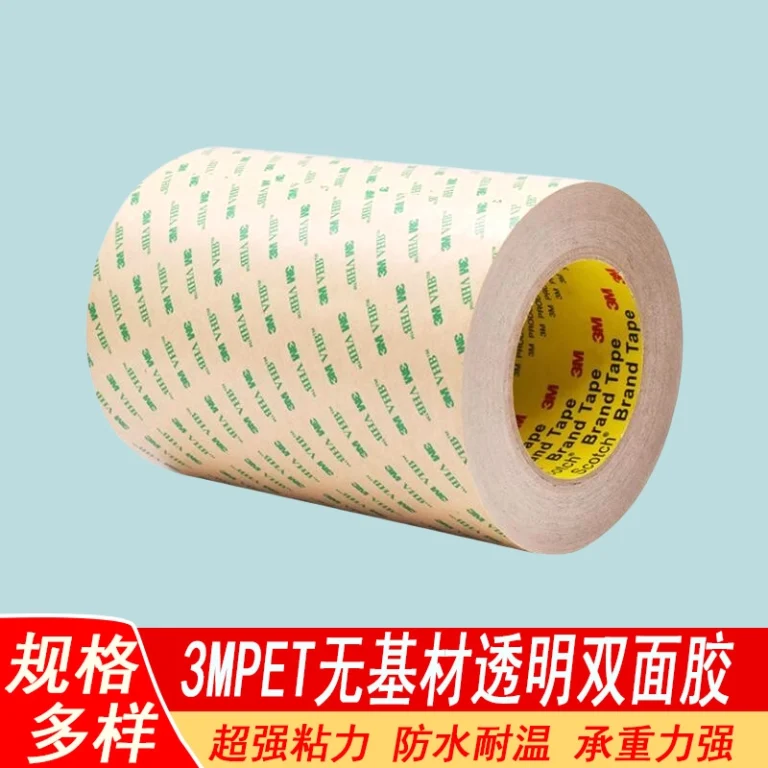

2.1 3C Electronic Precision Assembly | Recommended: PET, Black Light-blocking, Conductive Double-sided Tape
3C precision assembly requires strict dimensional accuracy. PET double-sided tape features ultra-thin flat texture and neat cutting effect; black light-blocking tape eliminates screen light leakage; conductive double-sided tape integrates bonding and electromagnetic shielding functions, perfectly suitable for precision scenarios such as digital shell lamination.
Core Advantages: Precise dimension, moisture resistance and aging resistance. Ideal for high-precision bonding of electronic auxiliary materials, display frame backing adhesive and circuit board point adhesive.

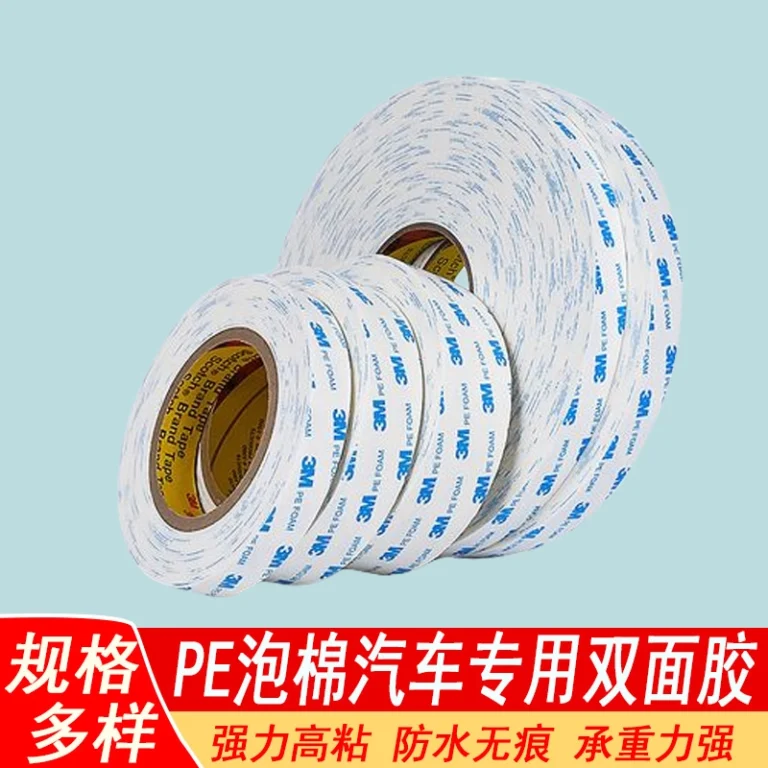

2.2 Automotive Interior Assembly | Recommended: VHB Foam, Flexible Tissue Double-sided Tape
Automotive interior materials require shock resistance, temperature resistance and noise elimination. Flexible tissue tape adapts to curved surfaces for buffering and noise reduction; high-elastic VHB structural foam tape resists driving vibration and ensures stable fixation for various vehicle interior scenarios.

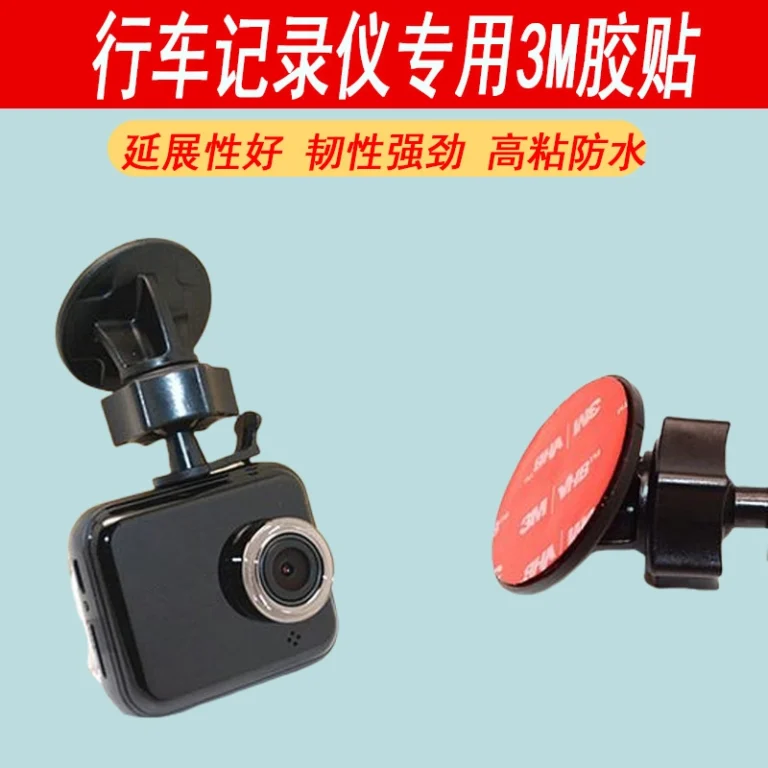

Core Advantages: Shock absorption and excellent weather resistance, effectively eliminating automotive interior abnormal noise. Suitable for automotive trim anti-vibration adhesive and vehicle ornament fixing adhesive.

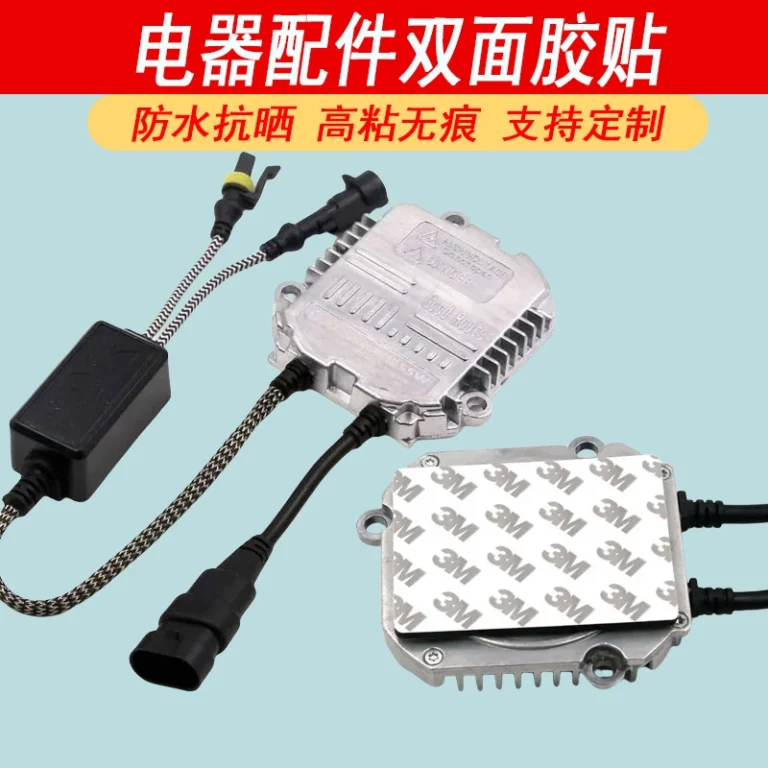

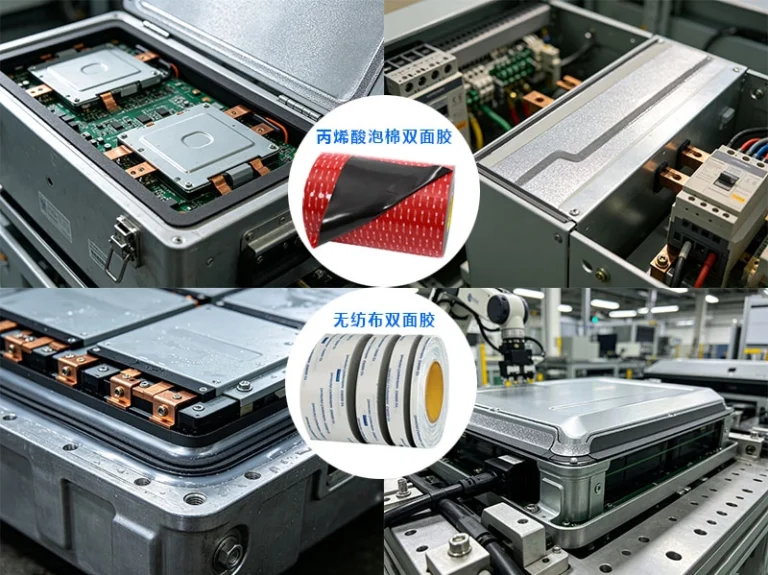

2.3 New Energy & Electrical Equipment | Recommended: Conductive Tape, Weather-resistant VHB Foam Tape
New energy and electrical equipment require electromagnetic protection and waterproof stability. Conductive double-sided tape provides grounding and anti-interference shielding; weather-resistant VHB foam tape withstands high and low temperatures and UV radiation, adapting to harsh working conditions of new energy battery components and electrical shielding structures.
Core Advantages: Stable electrical performance, anti-aging and high structural strength. Adaptable to complex high and low temperature environments and meeting sealing requirements of new energy and electrical equipment.
2.4 Outdoor Lamp & Equipment Applications | Recommended: VHB Foam, Weather-resistant PET Double-sided Tape

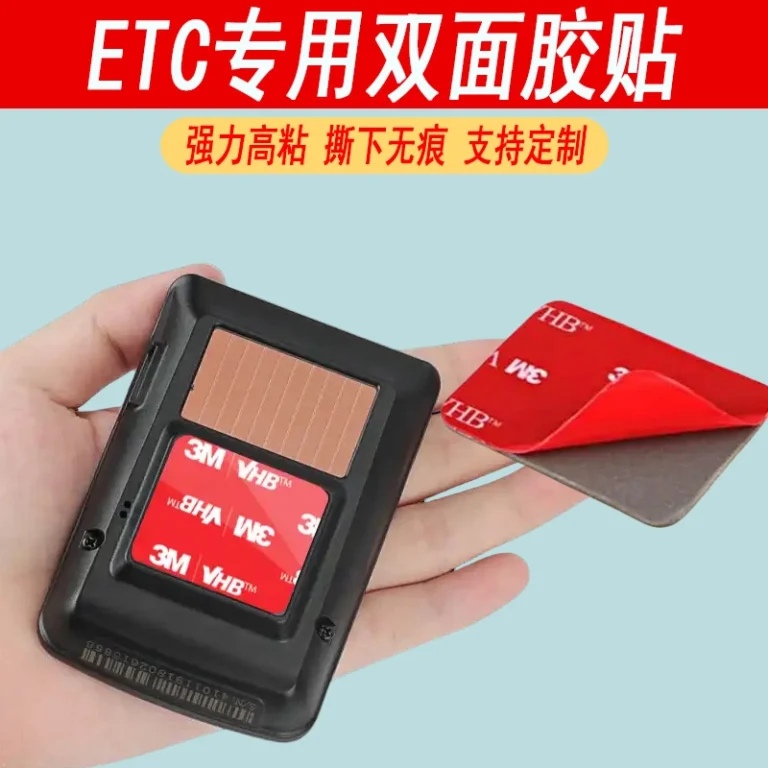

Outdoor environments feature severe temperature fluctuations, sunlight exposure and rain erosion. Weather-resistant PET tape resists UV radiation and deformation; VHB foam tape delivers outstanding waterproof and weather-resistant performance, ideal for outdoor UV-resistant sealing, ETC adhesive, parking sign fixing, lamp sealing backing adhesive and outdoor equipment weather-resistant bonding scenarios.
Core Advantages: Excellent resistance to strong sunlight, rain erosion and aging. Ensures long-term stable waterproof bonding for outdoor equipment.
3. Core Selection & Processing Pitfall Avoidance Guidelines
Many industrial bonding failures are not caused by poor tape viscosity, but by mismatched shapes and substrates. The following core guidelines help standardize selection and processing, greatly reducing assembly defect rates.
1. Shape adaptation takes priority over viscosity: Match die-cut shapes according to actual demands. Incomplete fitting easily causes edge warping and peeling. High-viscosity tape cannot compensate for poor shape fitting defects.
2. Substrate must match working condition attributes: Accurate material selection prevents performance failure caused by mismatching and improves bonding stability. Electronic anti-light leakage, automotive noise reduction, outdoor weather resistance and electromagnetic shielding all require exclusive substrate materials.
3. Prioritize waste-removal die-cutting for mass production: Adapted to automated production lines to improve assembly efficiency and reduce residual adhesive defects.
4. Prioritize compliance and weather resistance for harsh environments: For automotive, outdoor and export projects, select weather-resistant and RoHS-compliant materials to ensure long-term stability and project acceptance compliance.
Zhongke Foam provides full-custom die-cut double-sided tape solutions, covering all shapes and mainstream substrates including PET, tissue, VHB foam and conductive materials. Supporting personalized die-cut processing, batch customization and special-shaped cutting, the products fully adapt to 3C electronics, automotive interior, new energy and outdoor full-scenario precision bonding demands.
Which is more important for die-cut tape selection, viscosity or shape?
Shape adaptation is more critical. Accurate die-cut shape ensures full fitting and uniform stress. Even high-viscosity tape will warp and peel if the shape does not match the workpiece contour, while reasonable shape matching can maximize the performance of adhesive viscosity.
What tape is best for automotive interior anti-noise bonding?
Flexible tissue double-sided tape and VHB foam double-sided tape are the best choices. They have excellent shock absorption and buffering performance, fit curved automotive interior structures well, and effectively eliminate abnormal noise caused by vibration during driving.
What substrate is suitable for outdoor long-term sun exposure bonding?
Weather-resistant VHB foam tape and PET double-sided tape are recommended. Both materials have strong UV resistance, rain erosion resistance and aging resistance, which can maintain stable bonding performance for a long time in harsh outdoor environments without degumming or deformation.
Do precision electronic accessories need customized die-cut tape?
Yes. Standard regular tapes are prone to glue overflow, fitting dead corners and dimensional errors. Custom die-cut tapes with precise sizing and hollow design can meet the high-precision assembly and light-blocking shielding requirements of 3C electronic products.
